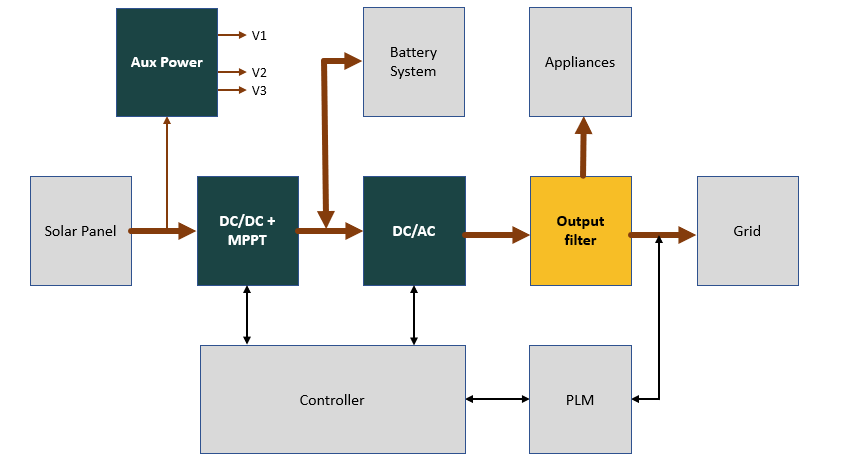

Block diagram
Solar Microinverter consists of DC/DC, AC/DC and different power-rails from Aux power supply. They work together to efficiently convert the solar power which provide accurate voltage and sufficiency power to performance the task. The latest technologies of single or multi-phase DC/DC will be used to improve the efficiency.
Solution
Andex’s power inductors cater to solar microinverter system power supply needs. PM and PML series are molding type power inductors. SD is shielded drum ferrite type power inductor and NSD series is semi-shield drum type power inductor. Andex offers various package, inductance, and current to meet different requirements.
|
Block/Function |
Product series |
Description |
|
|
DC/DC + MPPT DC/AC Aux Power |
Molding inductor, 4mm to 17mm, 0.1uH to 100uH, up to 62A. |
||
|
Low profile inductor, size( 2010 to 3212), 0.33uH to 4.7uH, up to 8.5A. |
|||
|
Shielded drum inductor, 7mm to 12mm, 1uH to 1000uH, up to 18A. |
|||
|
Semi-shielded drum inductor, 2mm to 8mm, 1uH to 680uH, up to 9.6A. |
|||
|
Input Filter |
Molding inductor, 4mm to 17mm, 0.1uH to 100uH, up to 62A. |
||
