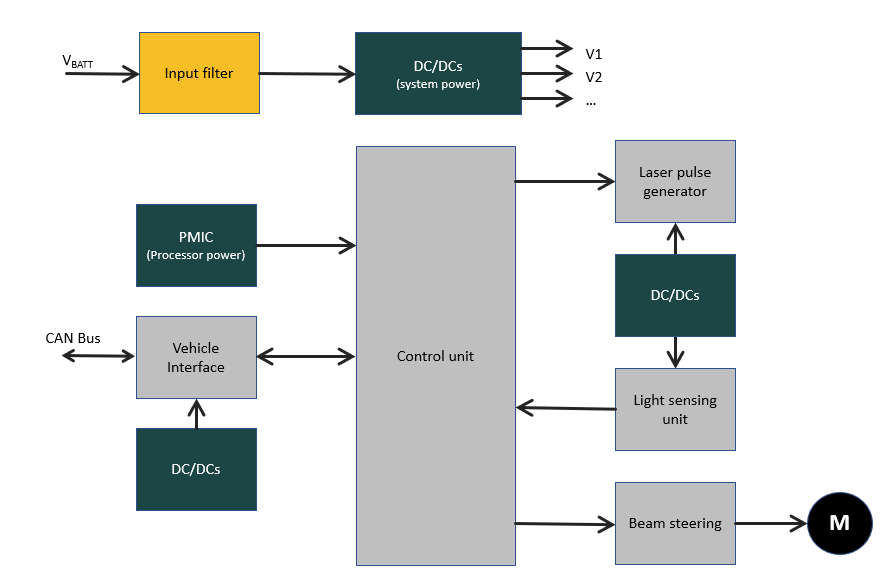

Block diagram
The LiDAR system consists of Control unit, Laser pulse generator (Tx), Light sensing unit (Rx), Beam steering, Vehicle Interface and some DC/DCs which provide power to the whole system.
Solution
Andex provides a wide range of power inductors to suit automotive LiDAR requirements. Their molding power inductors offer superior current handling capability and temperature stability, while our ferrite power inductors provide better efficiency and wide range of inductance. Single and dual coupled inductors are available, making them suitable for a variety of applications such as DC/DC or filtering.
|
Block/Function |
Product series |
Description |
|
DC/DCs and PMIC |
Automotive molding inductor, 4mm to 20mm, 0.1uH to 100uH, up to 150A, temperature range -55'C to 155’C, suitable for buck, boost or buck-boost topology |
|
|
Automotive dual shielded drum inductor, 7mm to 12mm, 0.1uH to 1000uH, up to 30A, temperature range -55'C to 165’C. Suitable for SEPICE topology |
||
|
Input Filter |
Automotive molding inductor, 4mm to 20mm, 0.1uH to 100uH, up to 150A, temperature range -55'C to 155’C, suitable for DM filter |
