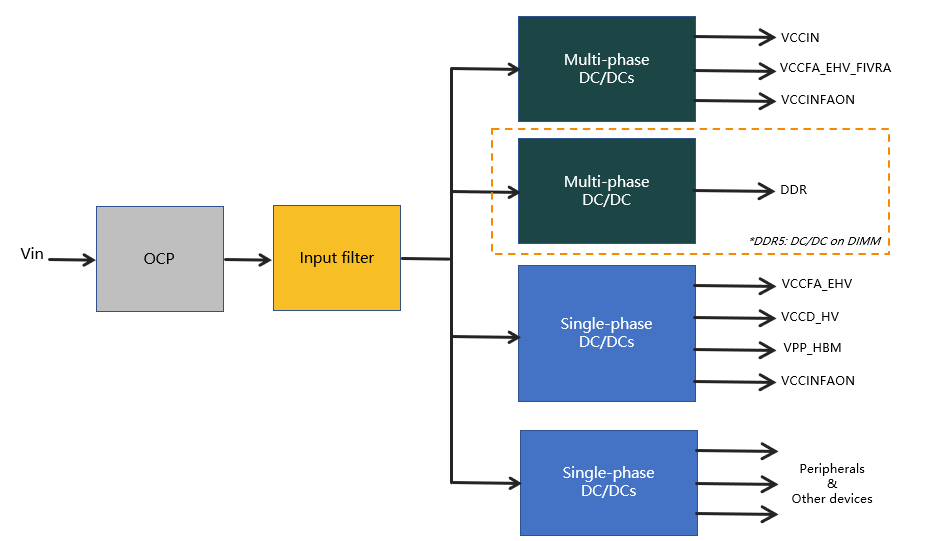

Block diagram

Severs Power consists of different power-rails which provide accurate voltage and sufficiency power to performance the task. The latest technologies of single or multi-phase DC/DC will be used to improve the efficiency.





Solution

Andex’s ferrite and molding inductors cater to server power supply needs. FC and PM series, offers various package, inductance, and current to meet high power requirements. In additional TVA series work with latest TLVR technology to provide the best performance to CPU.

Block/Function

Product series

Description

Multi-phase
DC/DCs

FC

Ferrite inductor, 4x4mm to 11x7mm, 55nH to 300nH, 100A+.
Design for high performance CPU, excellent performance and efficiency.

TLA

TLVR inductor, 9x6mm to 12x6mm, 70nH to 220nH, 100A+.
Design for high performance CPU, excellent performance and efficiency.

Single-phase
DC/DCs

PM

Molding inductor, 4mm to 17mm, 0.1uH to 100uH, up to 62A.
High current, good temperature stability.

PML

Low profile inductor, size( 2010 to 3212), 0.33uH to 4.7uH, up to 8.5A.
Small footprint. high current, good temperature stability.

SD

Shielded drum inductor, 7mm to 12mm, 1uH to 1000uH, up to 18A.
Wide inductance range, high efficiency.

NSD

    Semi-shielded drum inductor, 2mm to 8mm, 1uH to 680uH, up to 9.6A.
    Wide inductance range, balance cost and performance.

    Input Filter

FC

    Ferrite inductor, 4x4mm to 11x7mm, 55nH to 300nH, 100A+.
    Low DCR, high current, small form factor
